Series:JDGC

Automatic High Speed Overlap Draw String Bag on Roll Making Machine (Sway Type)

Automatic High Speed Overlap Draw String Bag on Roll Making Machine (Sway Type)
Overview and Features

This equipment is used for producing an interleaf draw tape bag on roll. This kind of bag can be packed as extractive packing.

Product Description
Items JDGC-800 JDGC-1000 JDGC-1200
Bag making width 400-650mm 500-850mm 500-1000mm
Bag making length 400-680mm 400-880mm 400-1080mm
Bag making speed 40-160pcs/min 40-120pcs/min 30-90 pcs/min
Bag making thickness HDPE:0.006-0.04mm
LDPE:0.015-0.05mm
Bag making methods Interleaf draw tape bag
Total power 20kw 20kw 22kw
Total weight 3200kg 3400kg 3600kg
Overall dimension 8000×1800×1900mm 8000×2000×1900mm 8000×2200×1900mm
Applications

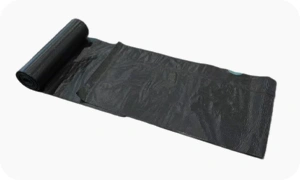

Automatic High Speed Overlap Draw String Bag on Roll Making Machine (Sway Type) finished products

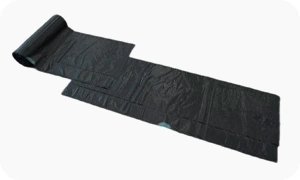

Automatic High Speed Overlap Draw String Bag on Roll Making Machine (Sway Type) finished products

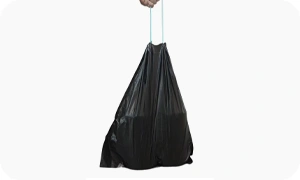

Automatic High Speed Overlap Draw String Bag on Roll Making Machine (Sway Type) finished products

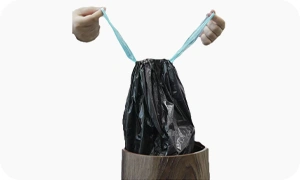

Automatic High Speed Overlap Draw String Bag on Roll Making Machine (Sway Type) finished products
