JDDT

Automatic Rolling Perforated Draw String Bag Making Machine

Features Specifications Applications
Overview and Features

This machine is used for producing rolling draw tape bags, adopting double servo motor control feeding, high capacity, easily operating. No stretch of sewing to make the bag more solid, automatic roll changing can save labor and improve working efficiency

Product Description
Items JDDT-800 JDDT-1000 JDDT-1200 JDDT-1300
Bag making width 400-650mm 500-850mm 500-1000mm 800-1100mm
Bag making length 400-680mm 400-880mm 400-1080mm 400-1180mm
Bag making speed 40-160pcs/min 40-120pcs/min 30-90pcs/min 25-70pcs/min
Bag making thickness HDPE:0.007-0.02mm HDPE:0.007-0.02mm HDPE:0.007-0.02mm HDPE:0.007-0.02mm
LDPE:0.02-0.05mm LDPE:0.02-0.05mm LDPE:0.02-0.05mm LDPE:0.02-0.05mm
Bag making method Rolling draw tape bag
Automatically roll change frequency 11 rolls/min 11 rolls/min 11 rolls/min 11 rolls/min
Total power 15kw 15kw 24kw 27kw
Total weight 3200kg 3400kg 3800kg 4300kg
Overall dimension 7000×2000×2200mm 7000×2000×2200mm 7000×2000×2600mm 7000×2400×2900mm

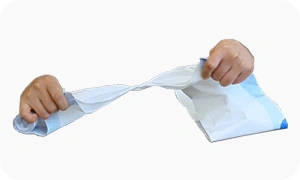

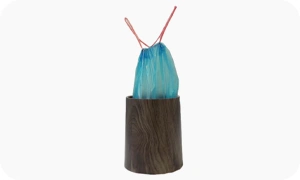

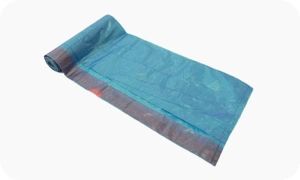

Applications
